Works whatever the weather
The P5L SSK offers a robust design that’s been rigorously tested to global standards. With advanced IP64-level protection, the device is designed to be resistant to water and dust. The high-definition screen is protected by 2mm thick Corning glass and offers a crisp, clear visual experience for the ultimate in payment convenience. It’s the perfect payment solution for fast food businesses, vending machines, parking garages and even toll booths.
Discover the
Power of the
SSK

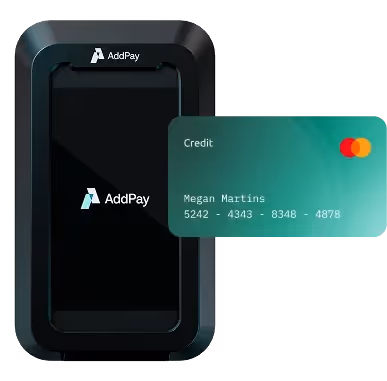

Super fast checkout
5.5 inch high-definition screen with a resolution up to 1280x720, offering an enhanced visual experience, while supporting NFC payments for faster, frictionless checkouts
All the ways to pay
Supports multiple payment types, including QR codes, credit cards, NFC payment and various e-wallets

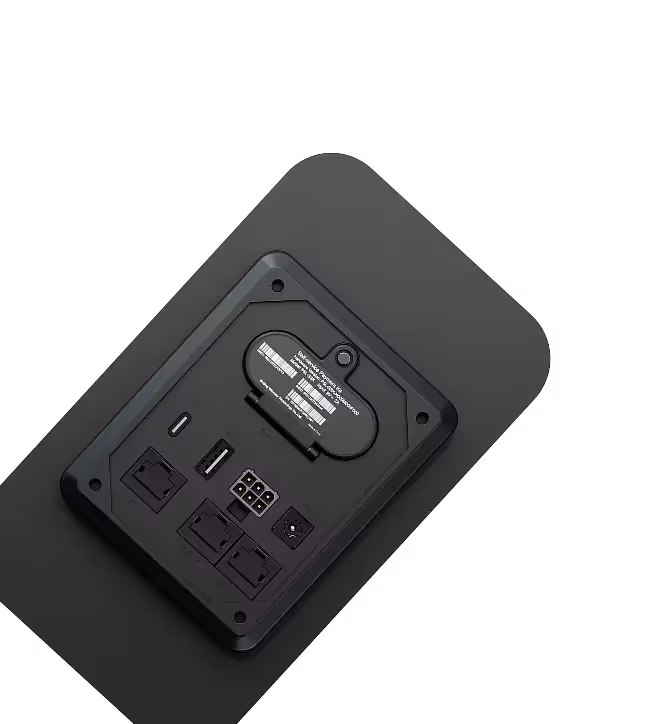

Variety of connectivity options
Whether it's streamlining your POS system, enhancing your operational infrastructure or simply expanding connectivity, this device easily adapts to your business for operational efficiency

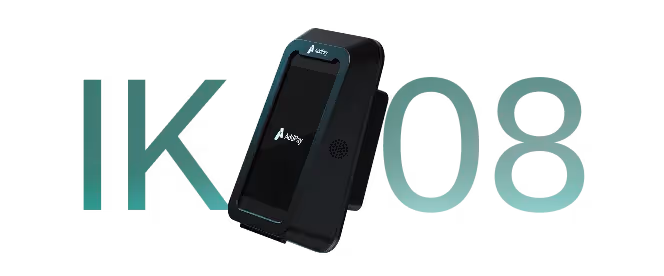

Small but tough
The sturdy P5L SSK has passed the IK08 impact resistance test with flying colours

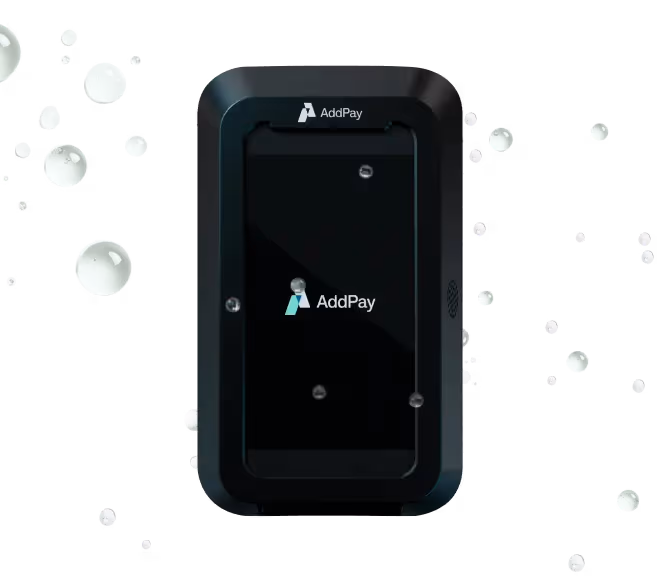

Weather resistant
Designed to integrate into diverse self-service payment scenarios, its advanced IP64-level protection ensures it remains resistant to water and dust.
Pure performance
Equipped with a quad-core 4G processor and large memory to offer a smooth user experience, time after time.
Discover the
Addpay
SSK
's
Technical Specifications
Operating System
- WiseOS 3.0 Based on Android 11
Model Name
- P5L-SSK
Memory
- 2GB LPDDR4 + 32GB eMMC
Bluetooth
- Bluetooth5.0, BLE
Audio
- Speaker：1W
- Mic (optional)
Size（L*W*H）
- 190*112*83.1 mm
Environment
- Operating temperature: -10°C to 55°C
- Storage temperature: -20°C to 60°C
Display
- 5.5 inch IPS Screen, 1280x720 HD Capacitive Multi-Point Touch Panel
GPS
- GPS/A-GPS, Glonass, Beidou
NFC
- 13.56MHz, ISO/IEC14443 TypeA&B,
- Mifare S50/S70, Felica
Certifications
- EMV CT L1/L2, EMV CTLS L1, VISA, Mastercard, AMEX, Discover, UPI, JCB, MCCS, Rupay, NSICCS, PCI PTS 6.1, TQM, CE
CPU
- Quad Cortex-A53, 2.0GHz
Network
- 2G/3G/4G
Camera
- Front Camera: 2M FF
Card Readers
- IC Card: ISO7816
Peripheral Ports
- MDB, 2*RS232, 1*Ethernet, 1*USB-A, 1*USB-C, 1*DC Jack
Adapter
- Input: AC 100-240V, 50/60Hz
- Output: 9V/2A
Security Processor
- Max 32555
Wifi
- 2.4G/5G, IEEE802.11 a/b/g/n/ac
Card Slot
- 2*Micro SIM slot + 1*PSAM Slot
Weight
- 584.5g
